Insulated Porcelain Panels

The Future of Exterior Insulated Cladding Systems

Imagine if you will a future with gleaming buildings covered with insulated porcelain that never fades, discolors, or stains. From vivid colors to traditional looks of granite, marble, wood grains, geometric designs or weathered metal. This Innovative design dramatically reduces energy requirements and provides safety by withstanding incredible temperatures. These are the buildings of the future and are available today with the ICAP Porcelain System. Buildings that will retain their beauty and the tests of time for generations.

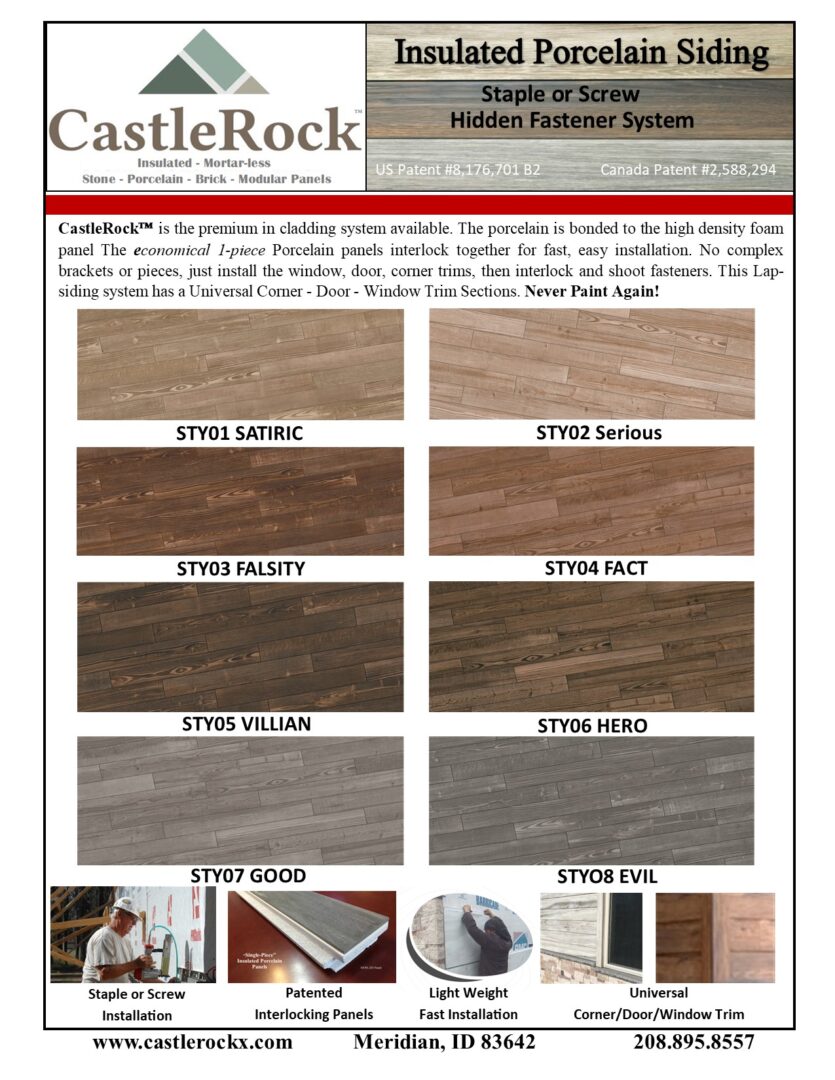

Insulated Porcelain Plank Siding
Up to 12" x 72"

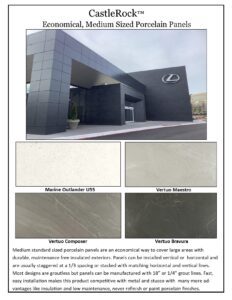

Medium Size Rectangular Porcelain Panels
UP to 24" x 63"

Modern-Home-Rendering

Large Format Insulated Porcelain Panels
up to 24" x 126"

Formats and Standard Sizes

All CastleRock/ICAP Product Install with Staples or Screws eliminating mortar, mess & reducing construction cost.

Lap & Flush Plank sizes are commonly available in the sizes below: Woodgrains, solids and textured colors are commonly use as siding. Lap Siding can only be installed horizontally.

Plank Style Siding Panel Sizes

Rectangular panels can be installed vertically, horizontally or diagonally. Please contact CastleRock to confirm available sizes. Common styles are granite, marble, slate, acid washed metals and a broad variety of solid and patterned colors.

Capture 2

Large Format up to 24" x 126" available in R-values: R-10 to R-20

Plank Series Flush or Lap Siding Wood Grain Panels.

Any brand of porcelain can be used with the CastleRock System. Please contact us for confirmation.

Lap Porcleain Wood Grain Panels Dimensional Specifications JPEG
Flush Porcleain Wood Grain Panels Dimensional Specifications
Slide3
Slide4
Slide6

Window/Door/Penetration Trims & Flashings

Colored Metal Flashing Door, Window & Corner Flashings: are the fastest, easiest and least expensive way to terminate the wall cladding.

Porcelain Door & Window Returns: provide the high-end look but require some additional labor time installing. Porcelain can be special ordered to the desired width for the return which will minimize the additional installation labor. Contact your ICAP sales rep for details.

Drop us a line today for a free quote! Send Plans or sq.ft. of area to be covered & lin. ft. of corner to les@castlerockx.com
